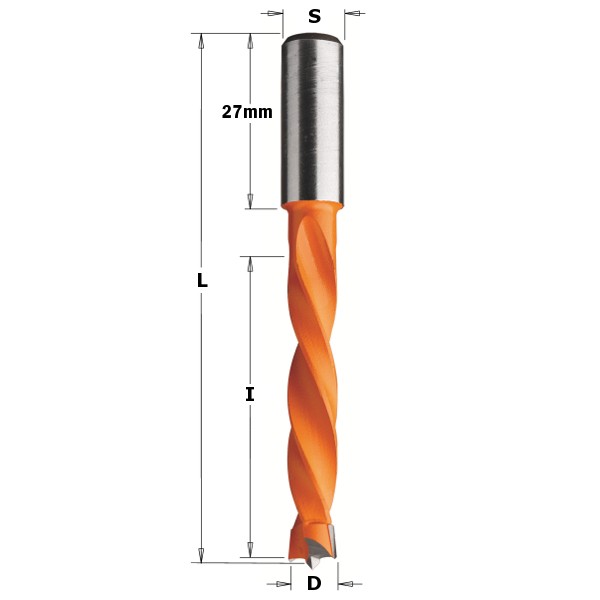

Series 373 - 4 Flute Dowel Drills

TECHNICAL DETAILS: - Super Strength Steel. - Spiral Portion Coated With Orange Or Black P.T.F.E. - HW Head With Precision Balanced Centre Point. - 2 Precision Ground Cutting Edges [Z2]. - 2 Ground Spurs [V2]. - 2 Spiral Flutes. - Parallel Shank With Driving Flat And Length Adjusting Screw. APPLICATION: - Used On Boring Machines Equipped With Adaptors Or Chucks. - Used To Drill Blind Holes In Solid Wood, Wood Composite, Plastic And Laminated Materials.

DIAMETER - MM	DRILL LENGTH - MM	OVERALL LENGTH - MM	SHANK - MM	TYPE	SKU
DIAMETER - MM: 5	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: RIGHT-HAND ROTATION	SKU: 373.050.11
DIAMETER - MM: 6	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: RIGHT-HAND ROTATION	SKU: 373.060.11
DIAMETER - MM: 7	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: RIGHT-HAND ROTATION	SKU: 373.070.11
DIAMETER - MM: 8	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: RIGHT-HAND ROTATION	SKU: 373.080.11
DIAMETER - MM: 10	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: RIGHT-HAND ROTATION	SKU: 373.100.11
DIAMETER - MM: 12	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: RIGHT-HAND ROTATION	SKU: 373.120.11
DIAMETER - MM: 5	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: LEFT-HAND ROTATION	SKU: 373.050.11
DIAMETER - MM: 6	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: LEFT-HAND ROTATION	SKU: 373.060.11
DIAMETER - MM: 7	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: LEFT-HAND ROTATION	SKU: 373.070.11
DIAMETER - MM: 8	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: LEFT-HAND ROTATION	SKU: 373.080.11
DIAMETER - MM: 10	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: LEFT-HAND ROTATION	SKU: 373.100.11
DIAMETER - MM: 12	DRILL LENGTH - MM: 50	OVERALL LENGTH - MM: 85	SHANK - MM: 10x27	TYPE: LEFT-HAND ROTATION	SKU: 373.120.11

TECHNICAL DETAILS:

- Super Strength Steel.

- Spiral Portion Coated With Orange Or Black P.T.F.E.

- HW Head With Precision Balanced Centre Point.

- 2 Precision Ground Cutting Edges [Z2].

- 2 Ground Spurs [V2].

- 2 Spiral Flutes.

- Parallel Shank With Driving Flat And Length Adjusting Screw.

APPLICATION:

- Used On Boring Machines Equipped With Adaptors Or Chucks.

- Used To Drill Blind Holes In Solid Wood, Wood Composite, Plastic And Laminated Materials.
