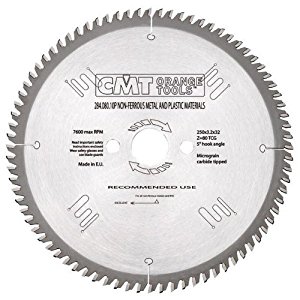

NON-FERROUS METAL & PLASTIC MATERIAL SAW BLADES (FOR INDUSTRIAL MACHINES)

284 APPLICATION: For Cutting And Dividing Tubes, Wire Drawn Products And Solid Blocks. MACHINES: Table Saws, Single Or Double Mitre Saws With Mechanical Clamping Of The Workpiece. MATERIAL: Aluminium, Brass, Copper Alloys, Plastic, Composite Materials. WARNING: It Is Recommended To Properly Clamp The Workpiece During Cutting Operations And To Use A Liquid Lubricant. Wax Sticks Are NOT RECOMMENDED.

D - MM	BORE - MM	NO. OF TEETH	KERF - MM	HOOK ANGLE	TYPE OF GRIND	SKU
D - MM: 250	BORE - MM: 32	NO. OF TEETH: 80	KERF - MM: 3.2	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.080.10P
D - MM: 300	BORE - MM: 32	NO. OF TEETH: 96	KERF - MM: 3.2	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.096.12P
D - MM: 350	BORE - MM: 32	NO. OF TEETH: 92	KERF - MM: 3.2	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.092.14P
D - MM: 350	BORE - MM: 32	NO. OF TEETH: 108	KERF - MM: 3.2	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.108.14P
D - MM: 400	BORE - MM: 32	NO. OF TEETH: 96	KERF - MM: 3.8	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.096.16P

284

APPLICATION: For Cutting And Dividing Tubes, Wire Drawn Products And Solid Blocks.

MACHINES: Table Saws, Single Or Double Mitre Saws With Mechanical Clamping Of The Workpiece.

MATERIAL: Aluminium, Brass, Copper Alloys, Plastic, Composite Materials.

WARNING: It Is Recommended To Properly Clamp The Workpiece During Cutting Operations And To Use A Liquid Lubricant. Wax Sticks Are NOT RECOMMENDED.
