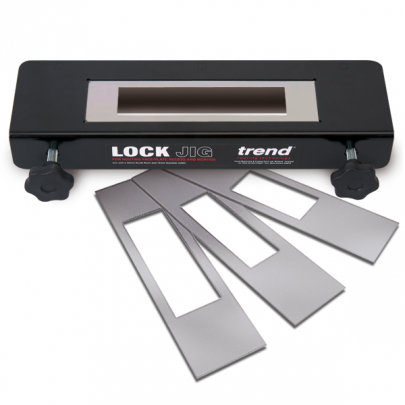

Lock Jig

Contractor jig with interchangeable templates for use with a plunge router to vut the mortise & face-plate recess for popular door locks. Kit includes: 1 x Guide Bush Collar 12 x Face Plate Templates 5 x Mortise Templates 6 x Spacer Fingers Features: For most common sash mortises & dead locks, with up to 3 inch deep mortise & face-plate recess for popular door locks Deeper mortises can be achieved with a suitable size of auger bit. Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood. Steel plates & body An auger bit and drill...

Min. door thickness	Max. door thickness	SKU
Min. door thickness: 34mm	Max. door thickness: 58mm	SKU: LOCK/JIG

Contractor jig with interchangeable templates for use with a plunge router to vut the mortise & face-plate recess for popular door locks.

Kit includes:

1 x Guide Bush Collar
12 x Face Plate Templates
5 x Mortise Templates
6 x Spacer Fingers

Features:

For most common sash mortises & dead locks, with up to 3 inch deep mortise & face-plate recess for popular door locks
Deeper mortises can be achieved with a suitable size of auger bit.
Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
Steel plates & body
An auger bit and drill is required to complete deep mortises
The jig requires a 1/2-inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise

TO PURCHASE, VISIT OUR STORE OR CALL US ON 01204 701000
