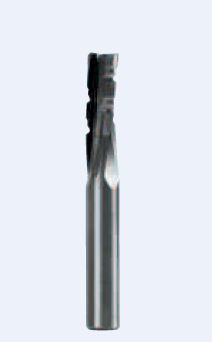

FS Tool Spiral For Phenolic / Composite Material Upcut, Z=3

D E S I G N : • Execellent chipflow, lower heat retention and increased tool rigidity are provided by the 3 flute, low helix design • Special Chipbreakers for Phenolic reduce cutting pressure and noise levels • Excellent chipflow and lower heat retention are provided by the 3 flute design with Phenolic Chipbreakers • Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up • 10º Helix design with plunging capability A P P L I C AT I O N : • Specifically designed to provide an excellent finish and reduced noise levels when...
Cutting Diameter Flute Length Shank Diameter No. Flutes Overall Length SKU
Cutting Diameter: 1/4" Flute Length: 5/8" Shank Diameter: 1/4" No. Flutes: 3 Overall Length: 2-1/2" SKU: RSCP2108-U3
Cutting Diameter: 3/8" Flute Length: 7/8" Shank Diameter: 3/8" No. Flutes: 3 Overall Length: 3" SKU: RSCP2118-U3
Cutting Diameter: 1/2" Flute Length: 7/8" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 3" SKU: RSCP2121-U3
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4" SKU: RSCP2122-U3
Cutting Diameter: 1/2" Flute Length: 2-1/8" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4-1/2" SKU: RSCP2131-U3

D E S I G N :


• Execellent chipflow, lower heat retention and increased
tool rigidity are provided by the 3 flute, low helix design
• Special Chipbreakers for Phenolic reduce cutting
pressure and noise levels
• Excellent chipflow and lower heat retention are
provided by the 3 flute design with Phenolic
Chipbreakers
• Submicron, corrosion resistant, extended life carbide
provides increased durability and resistance to resin
build-up
• 10º Helix design with plunging capability


A P P L I C AT I O N :


• Specifically designed to provide an excellent finish
and reduced noise levels when cutting Phenolic
• Faster feed rates at low spindle speeds
• 3 flute design allows for two cutting edges to be
engaged at all times, providing greater stability and
reducing run-out
• Improved cutting edge life when cutting Phenolic
• Eliminates chipping along the bottom face
• Upcut spiral improves chip ejection from
the cutting path
• For improved dust extraction use with an
Aerotech (page FC21)



EXPANDED CAPABILITIES

Each spiral router bit listed can be ordered with modifications
that will extend it’s capabilities. Please reference the
appropriate product page(s) for more information on each
modification’s specific applications and benefits.



FOR A PRICE, RING 01204 701000 !!
