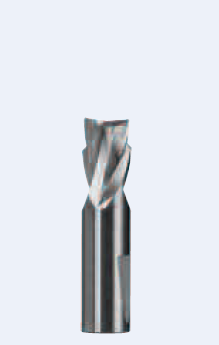

FS Tool Spiral 10 Degree Dovetail Downcut, Z=2

A P P L I C AT I O N : • For exceptionally smooth finishing cuts • Significantly increased tool life and cut quaility compared to a brazed dovetail router bits • Downcut spiral provides a smooth finish along the top edge   D E S I G N : • Unique offset cutting edge design eliminates burring of the workpiece’s top edge • Excellent chipflow and lower heat retention is provided by the 2 spiral flute design • Special submicron, corrosion resistant, extended life carbide provides increased cutting edge durability and resistance to resin build-up when cutting solid...
Dovetail Angle Cutting Diameter Dovetail Length Shank Diameter No. Flutes Overall Length SKU
Dovetail Angle: 10º Cutting Diameter: 14mm Dovetail Length: 9mm Shank Diameter: 14mm No. Flutes: 2 Overall Length: 60mm SKU: RSFDLM1014/9-D2
Dovetail Angle: 10º Cutting Diameter: 14mm Dovetail Length: 10mm Shank Diameter: 14mm No. Flutes: 2 Overall Length: 60mm SKU: RSFDLM1014/10-D2
Dovetail Angle: 10º Cutting Diameter: 14mm Dovetail Length: 0.450" Shank Diameter: 14mm No. Flutes: 2 Overall Length: 60mm SKU: RSFDL1014/450-D2
Dovetail Angle: 10º Cutting Diameter: 14mm Dovetail Length: 0.622" Shank Diameter: 14mm No. Flutes: 2 Overall Length: 60mm SKU: RSFDL1014/622-D2

A P P L I C AT I O N :


• For exceptionally smooth finishing cuts
• Significantly increased tool life and cut quaility compared to a brazed
dovetail router bits
• Downcut spiral provides a smooth finish along the top edge



D E S I G N :


• Unique offset cutting edge design eliminates
burring of the workpiece’s top edge
• Excellent chipflow and lower heat retention is
provided by the 2 spiral flute design
• Special submicron, corrosion resistant,
extended life carbide provides increased cutting
edge durability and resistance to resin build-up
when cutting solid wood and materials of
inconsistent density
• Designed for OMEC Dovetail Machines
WHEN ORDERING SPECIFY
• If your machines has an Eccentric Spindle,
router bits will be custom manufactured



FOR A PRICE, RING 01204 701000 !!
