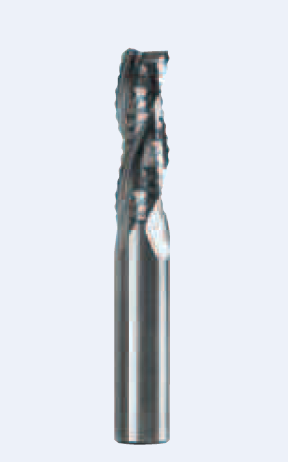

D E S I G N :
• Clean but uneven surface finish is produced by the
aggressive scalloped cutting edge design, otherwise
known as “Knuckles”
• Knuckles reduce cutting pressure by creating
multiple cuts or chips along a single cutting edge
• Good chipflow and lower heat retention in solid wood
are provided by the 3 flute design with Knuckles
• Faster feed rates at lower spindle speeds in solid
wood are possible due to the 3 precision ground
scalloped cutting edges
• Special submicron, corrosion resistant, extended life
carbide provides increased cutting edge durability and
resistance to resin build-up when cutting solid wood
and materials of inconsistent density
• 30º Helix design with plunging capability
A P P L I C AT I O N :
• Knuckles reduce cutting pressure and produce smaller
chips that in turn improve chipflow, allowing for higher
feed rates and increased tool life in hard materials,
solid wood and material hogging applications
• Commonly used for rebates, dadoes/grooving and
pocketing operations on raw panels, plywood and
solid wood
• 3 flute design allows for two cutting edges to be
engaged at all times, providing greater stability and
reducing run-out
• Upcut spiral provides excellent chip ejection from
the cutting path
