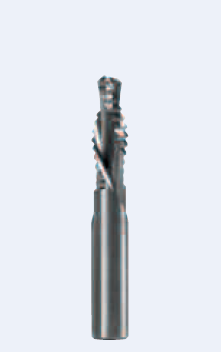

FS Tool Roughing Downcut, Z=2

D E S I G N : • Clean but uneven surface finish is produced by the aggressive scalloped cutting edge design, otherwise known as “Knuckles” • Knuckles reduce cutting pressure by creating multiple cuts or chips along a single cutting edge • Good chipflow and lower heat retention in solid wood are provided by the 2 flute design with Knuckles • Fast feed rates in solid wood are possible due to the 2 precision ground scalloped cutting edges • Special submicron, corrosion resistant, extended life carbide provides increased cutting edge durability and resistance to resin build-up when cutting solid...
Cutting Diameter Flute Length Shank Diamteter No. Flutes Overall Length SKU
Cutting Diameter: 8mm Flute Length: 35mm Shank Diamteter: 8mm No. Flutes: 2 Overall Length: 80mm SKU: RSCM0835-D2
Cutting Diameter: 3/8" Flute Length: 1-1/4" Shank Diamteter: 3/8" No. Flutes: 2 Overall Length: 3" SKU: RSC2015-D2
Cutting Diameter: 3/8" Flute Length: 1-1/4" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: RSC2016-D2
Cutting Diameter: 10mm Flute Length: 35mm Shank Diamteter: 10mm No. Flutes: 2 Overall Length: 80mm SKU: RSCM1035-D2
Cutting Diameter: 12mm Flute Length: 35mm Shank Diamteter: 12mm No. Flutes: 2 Overall Length: 80mm SKU: RSCM1235-D2
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: RSC2020-D2
Cutting Diameter: 1/2" Flute Length: 1-1/2" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3-1/2" SKU: RSC2024-D2
Cutting Diameter: 1/2" Flute Length: 2" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 4" SKU: RSC2028-D2
Cutting Diameter: 5/8" Flute Length: 1-1/2" Shank Diamteter: 5/8" No. Flutes: 2 Overall Length: 4" SKU: RSC2036-D2
Cutting Diameter: 5/8" Flute Length: 2" Shank Diamteter: 5/8" No. Flutes: 2 Overall Length: 4" SKU: RSC2038-D2
Cutting Diameter: 3/4" Flute Length: 1-1/2" Shank Diamteter: 3/4" No. Flutes: 2 Overall Length: 4" SKU: RSC2042-D2
Cutting Diameter: 3/4" Flute Length: 2" Shank Diamteter: 3/4" No. Flutes: 2 Overall Length: 4" SKU: RSC2044-D2

D E S I G N :


• Clean but uneven surface finish is produced by the
aggressive scalloped cutting edge design, otherwise
known as “Knuckles”
• Knuckles reduce cutting pressure by creating
multiple cuts or chips along a single cutting edge
• Good chipflow and lower heat retention in solid wood
are provided by the 2 flute design with Knuckles
• Fast feed rates in solid wood are possible
due to the 2 precision ground scalloped cutting edges
• Special submicron, corrosion resistant, extended life
carbide provides increased cutting edge durability and
resistance to resin build-up when cutting solid wood
and materials of inconsistent density
• 30º Helix design with plunging capability


A P P L I C AT I O N :


• Knuckles reduce cutting pressure and produce smaller
chips that in turn improve chipflow, allowing for higher
feed rates and increased tool life in hard materials,
solid wood and material hogging applications
• Commonly used for rebates, dadoes/grooving and
pocketing operations on raw panels, plywood and
solid wood
• Increased cutting edge life when frequently
accelerating/decelerating or performing multiple
passes such as “Onion skinning”
• Downward cutting action helps hold down material
