D E S I G N :
• Large clearance areas prevent re-welding of debris by
allowing chips to quickly flow away from the cutting
edges
• Knuckles reduce cutting pressure by creating
multiple cuts or chips along a single cutting edge
• Good chipflow and lower heat retention in hard
materials are provided by the 3 flute design with
Knuckles
• Faster feed rates in solid wood are possible
due to the precision ground scalloped cutting edges
• Special submicron, corrosion resistant, extended life
carbide provides increased cutting edge durability and
resistance to resin build-up when cutting solid wood
and materials of inconsistent density

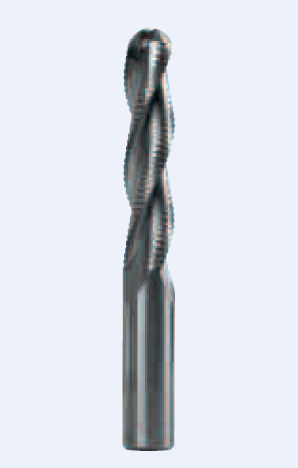

• 30º Helix design with plunging capability
A P P L I C AT I O N :
• Knuckles produce small chips and improve chipflow,
allowing for higher feed rates, lower cutting pressure
and tool life in hard materials and hogging applications
• For an exceptionally smooth finish on
3 dimensional machining operations such as
mouldings and sculpted parts
• Exceptional finish on hardwoods, softwoods, MDF,
chipboard, plywood, solid surface, plastics and
composite materials
• 3 flute design allows for two cutting edges to be
engaged at all times, providing greater stability and
reducing run-out
• Upcut spiral improves chip ejection from
the cutting path
FOR A PRICE, RING 01204 701000 !!
