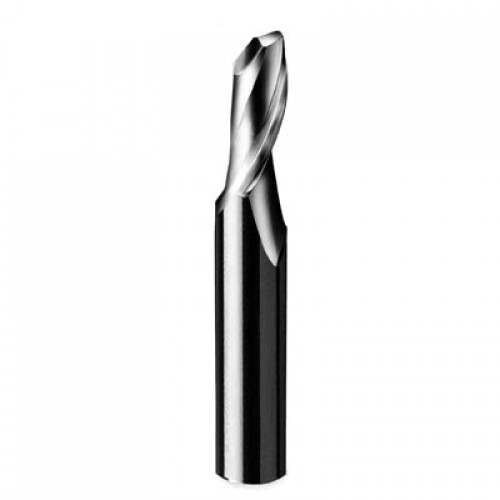

FS Tool Finishing Upcut, 3 Flute

DESIGN: - Superior surface finish is produced by the 3 precision ground cutting edges. - Good chipflow and lower heat retention are provided by the 3 flute design. - Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up. - 30º Helix design with plunging capability. APPLICATION: - Commonly used for rebates, dadoes/grooving and pocketing operations on raw panels, one side laminated with face down or solid wood. - Excellent finish on hardwoods, softwoods, laminated panels, MDF, chipboard, plywood and solid surface materials. - Faster feed rates at low spindle speeds. - 3 Flute design allows for two cutting edges to be...
Cutting Diameter Flute Length Shank Diameter No. Flutes Overall Length SKU
Cutting Diameter: 8mm Flute Length: 35mm Shank Diameter: 8mm No. Flutes: 3 Overall Length: 80mm SKU: RSFM08035-U3
Cutting Diameter: 3/8" Flute Length: 5/8" Shank Diameter: 3/8" No. Flutes: 3 Overall Length: 2-1/2" SKU: RSF2011S-U3
Cutting Diameter: 3/8" Flute Length: 7/8" Shank Diameter: 3/8" No. Flutes: 3 Overall Length: 2-1/2" SKU: RSF2013S-U3
Cutting Diameter: 3/8" Flute Length: 7/8" Shank Diameter: 3/8" No. Flutes: 3 Overall Length: 3" SKU: RSF2018-U3
Cutting Diameter: 10mm Flute Length: 35mm Shank Diameter: 10mm No. Flutes: 3 Overall Length: 80mm SKU: RSFM10035-U3
Cutting Diameter: 12mm Flute Length: 35mm Shank Diameter: 12mm No. Flutes: 3 Overall Length: 80mm SKU: RSFM12035-U3
Cutting Diameter: 1/2" Flute Length: 5/8" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 3" SKU: RSF2019S-U3
Cutting Diameter: 1/2" Flute Length: 7/8" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 3" SKU: RSF2020S-U3
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 3" SKU: RSF2022-U3
Cutting Diameter: 1/2" Flute Length: 1-1/2" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 3-1/2" SKU: RSF2026-U3
Cutting Diameter: 1/2" Flute Length: 2" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4" SKU: RSF2030-U3
Cutting Diameter: 14mm Flute Length: 55mm Shank Diameter: 14mm No. Flutes: 3 Overall Length: 100mm SKU: RSFM14055-U3
Cutting Diameter: 5/8" Flute Length: 2" Shank Diameter: 5/8" No. Flutes: 3 Overall Length: 4" SKU: RSF2040-U3
Cutting Diameter: 16mm Flute Length: 55mm Shank Diameter: 16mm No. Flutes: 3 Overall Length: 100mm SKU: RSFM16055-U3
Cutting Diameter: 18mm Flute Length: 55mm Shank Diameter: 18mm No. Flutes: 3 Overall Length: 100mm SKU: RSFM18055-U3
Cutting Diameter: 3/4" Flute Length: 2" Shank Diameter: 3/4" No. Flutes: 3 Overall Length: 4" SKU: RSF2046-U3
Cutting Diameter: 3/4" Flute Length: 2-1/2" Shank Diameter: 3/4" No. Flutes: 3 Overall Length: 5" SKU: RSF2050-U3
Cutting Diameter: 20mm Flute Length: 55mm Shank Diameter: 20mm No. Flutes: 3 Overall Length: 100mm SKU: RSFM20055-U3

DESIGN:

- Superior surface finish is produced by the 3 precision ground cutting edges.

- Good chipflow and lower heat retention are provided by the 3 flute design.

- Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up.

- 30º Helix design with plunging capability.

APPLICATION:

- Commonly used for rebates, dadoes/grooving and pocketing operations on raw panels, one side laminated with face down or solid wood.

- Excellent finish on hardwoods, softwoods, laminated panels, MDF, chipboard, plywood and solid surface materials.

- Faster feed rates at low spindle speeds.

- 3 Flute design allows for two cutting edges to be engaged at all times, providing greater stabilityand reducing run-out.

- Incresed number of bite marks per inch reduces chip size and provides a smooth finish on the core of plywood and particleborards, especially important when edge-banding wihtout pre-milling operations.

- Eliminates chipping, fuzzing and tear out along the bottom face of the board.

- Upcut spiral improves chip ejection from the cutting path.

- For improved dust extraction use with an Aerotech (Page FC21)
