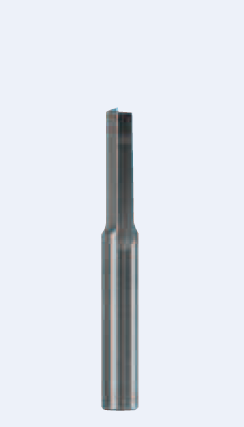

FS Tool Finishing Straight, Z=2

D E S I G N : • Excellent surface finish is produced by the 2 precision ground cutting edges • Good chipflow is provided by the 2 straight flute design at moderate feed rates • Faster feed-rates due to 2 cutting edges • Straight cutting edge with plunging capability A P P L I C AT I O N : • For smooth finishing cuts • Superior finish on hardwoods, softwoods, MDF, solid surface materials that are not veneered or laminated • Increased cutting edge life when frequently accelerating/decelerating or performing multiple passes such as “Onion skinning” • For...
Cutting Diameter Flute Length Shank Diamteter No. Flutes Overall Length SKU
Cutting Diameter: 1/8" Flute Length: 3/8" Shank Diamteter: 1/4" No. Flutes: 2 Overall Length: 1-1/2" SKU: R1100
Cutting Diameter: 5/32" Flute Length: 5/8" Shank Diamteter: 1/4" No. Flutes: 2 Overall Length: 1-1/2" SKU: R1104
Cutting Diameter: 3/16" Flute Length: 5/8" Shank Diamteter: 1/4" No. Flutes: 2 Overall Length: 2" SKU: R1106
Cutting Diameter: 7/32" Flute Length: 3/4" Shank Diamteter: 1/4" No. Flutes: 2 Overall Length: 2" SKU: R1108
Cutting Diameter: 1/4" Flute Length: 3/4" Shank Diamteter: 1/4" No. Flutes: 2 Overall Length: 2" SKU: R1110
Cutting Diameter: 1/4" Flute Length: 1" Shank Diamteter: 1/4" No. Flutes: 2 Overall Length: 2-1/2" SKU: R1112
Cutting Diameter: 1/4" Flute Length: 3/4" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: R1304
Cutting Diameter: 1/4" Flute Length: 1" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: R1306
Cutting Diameter: 5/16" Flute Length: 1" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: R1308
Cutting Diameter: 3/8" Flute Length: 1" Shank Diamteter: 3/8" No. Flutes: 2 Overall Length: 3" SKU: R1302
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: R1310

D E S I G N :
• Excellent surface finish is produced by the 2 precision
ground cutting edges
• Good chipflow is provided by the 2 straight flute
design at moderate feed rates
• Faster feed-rates due to 2 cutting edges
• Straight cutting edge with plunging capability
A P P L I C AT I O N :
• For smooth finishing cuts
• Superior finish on hardwoods, softwoods, MDF,
solid surface materials that are not veneered
or laminated
• Increased cutting edge life when frequently
accelerating/decelerating or performing multiple
passes such as “Onion skinning”
• For improved dust extraction use with an
Aerotech (page FC21)
