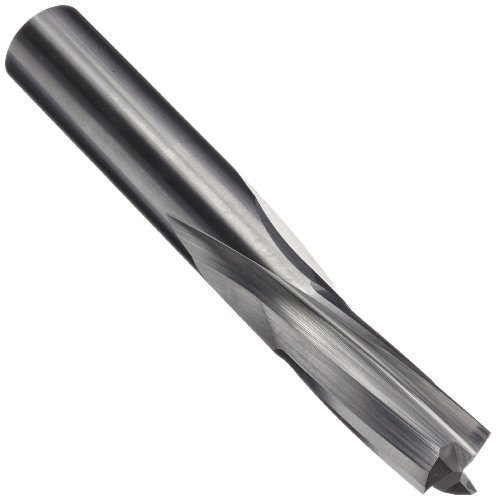

FS Tool Finishing Low Helix Downcut, 3 Flute

DESIGN: - Excellent chipflow, lower heat retention and increased tool rigidity are provided by the 3 flute low helix design. - Low Low helix design reduces lifting force and deflection of work pieces. - Submicron, corrosion resistant, extended life carbide provides increased durability and resistant to resin build-up. - 10º Helix deisgn with plunging capability. APPLICATION: - Superior finish on hardwoods, softwoods, MDF & solid surface materials. - Faster feed ratesat low spindle speeds. - 3 Flute design allows for 2 cutting edges to be engaged at all time, providing greater stability and reducing run-out. - Improved cutting edge life...
Cutting Diameter Flute Length Shank Diameter No. Flutes Overall Length SKU
Cutting Diameter: 1/4" Flute Length: 3/4" Shank Diameter: 1/4" No. Flutes: 3 Overall Length: 3" SKU: RSFL2006-D3
Cutting Diameter: 5/16" Flute Length: 1" Shank Diameter: 5/16" No. Flutes: 3 Overall Length: 3" SKU: RSFL2010-D3
Cutting Diameter: 3/8" Flute Length: 1-1/4" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4" SKU: RSFL2018-D3
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4" SKU: RSFL2022-D3
Cutting Diameter: 1/2" Flute Length: 2-1/2" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4-1/2" SKU: RSFL2030-D3
Cutting Diameter: 3/4" Flute Length: 2" Shank Diameter: 3/4" No. Flutes: 3 Overall Length: 5" SKU: RSFL2046-D3
Cutting Diameter: 3/4" Flute Length: 2-1/2" Shank Diameter: 3/4" No. Flutes: 3 Overall Length: 5" SKU: RSFL2052-D3

DESIGN:

- Excellent chipflow, lower heat retention and increased tool rigidity are provided by the 3 flute low helix design.

- Low Low helix design reduces lifting force and deflection of work pieces.

- Submicron, corrosion resistant, extended life carbide provides increased durability and resistant to resin build-up.

- 10º Helix deisgn with plunging capability.

APPLICATION:

- Superior finish on hardwoods, softwoods, MDF & solid surface materials.

- Faster feed ratesat low spindle speeds.

- 3 Flute design allows for 2 cutting edges to be engaged at all time, providing greater stability and reducing run-out.

- Improved cutting edge life when cutting hard materials and deep cuts.

- Noise levels during cutting operations of hard materials will be reduced due to lower cutting pressure required.

- Eliminates chipping, fuzzing aqnd tear-out along the bottom face of the board.

- Upcut spiral imnproves chip ejection from the cutting path.

- For improved dust extraction use with an Aerotech (Page FC21).
