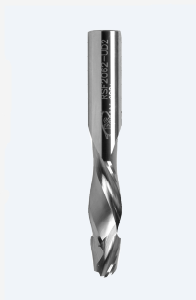

FS Tool Finishing Compression, 1+1 Flute

DESIGN: - Excellent surface finish is produced by the single precision ground cutting edge. - Excellent chipflow & lower heat retention are provided by the single flute design. - Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up. - 30º Helix design with plunging capability. APPLICATION: - Ideal multi-purpose tool for single tool CNC routers. - For smooth finishing cuts. - Excellent finish on Hardwoods, Softwoods, Laminated Panels, MDF, Chipboard, Plywood & Solid Surface Materials. - Superior cutting edge life when frequently accelerating/decelerating or performing multiple passes such as "Onion Skinning". - Eliminates chipping, fuzzing...
Cutting Diameter Flute Length Shank Diameter Upcut Length No. Flutes Overall Length SKU
Cutting Diameter: 1/4" Flute Length: 7/8"" Shank Diameter: 1/4" Upcut Length: 0.188" No. Flutes: 1+1 Overall Length: 2-1/2" SKU: RSF2058-UD1
Cutting Diameter: 3/8" Flute Length: 1-1/8" Shank Diameter: 3/8" Upcut Length: 0.400" No. Flutes: 1+1 Overall Length: 3" SKU: RSF2060-UD1
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diameter: 1/2" Upcut Length: 0.390" No. Flutes: 1+1 Overall Length: 3" SKU: RSF2061-UD1
Cutting Diameter: 1/2" Flute Length: 1-1/2" Shank Diameter: 1/2" Upcut Length: 0.390" No. Flutes: 1+1 Overall Length: 3-1/2" SKU: RSF2062-UD1
Cutting Diameter: 1/2" Flute Length: 2" Shank Diameter: 1/2" Upcut Length: 0.390" No. Flutes: 1+1 Overall Length: 4" SKU: RSF2063-UD1
Cutting Diameter: 5/8" Flute Length: 1-1/2" Shank Diameter: 5/8" Upcut Length: 0.465" No. Flutes: 1+1 Overall Length: 4" SKU: RSF2064-UD1
Cutting Diameter: 3/4" Flute Length: 2" Shank Diameter: 3/4" Upcut Length: 0.625" No. Flutes: 1+1 Overall Length: 4" SKU: RSF2066-UD1

DESIGN:

- Excellent surface finish is produced by the single precision ground cutting edge.

- Excellent chipflow & lower heat retention are provided by the single flute design.

- Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up.

- 30º Helix design with plunging capability.

APPLICATION:

- Ideal multi-purpose tool for single tool CNC routers.

- For smooth finishing cuts.

- Excellent finish on Hardwoods, Softwoods, Laminated Panels, MDF, Chipboard, Plywood & Solid Surface Materials.

- Superior cutting edge life when frequently accelerating/decelerating or performing multiple passes such as "Onion Skinning".

- Eliminates chipping, fuzzing and tear-out when the end of the upcut/downcut cutting edges are further than 1/16" from the top and bottom faces of the board.

- Use a "Mortise" upcut length of "0.188" when cutting rebates, dados or pockets.

- If part movement is a concern, use a "Mortise" upcut length of "0.188".

- When possible select a router bit with a longer upcut length to improve chip ejection from the cutting path.

- For improved dust extraction use with an Aerotech (Page FC21).
