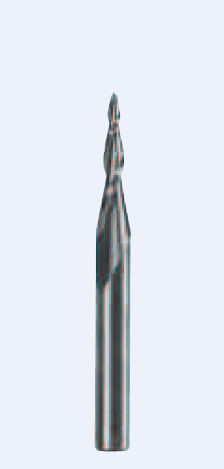

FS Tool Finishing Ballnose, Tapered

D E S I G N : • Tapered design provides increased strength and rigidity for small ballnose diameters and long flute lengths • Superior surface finish is produced by the precision ground cutting edges • Large clearance areas prevent re-welding of debris by allowing chips to quickly flow away from the cutting edges • Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up • 30º Helix design with plunging capability A P P L I C AT I O N : • For an exceptionally smooth finish on 3 dimensional machining operations such as...
Ballnose Diameter Taper Incl. Angle Flute Length Shank Diameter No. Flutes Overall Length SKU
Ballnose Diameter: 1/16" Taper Incl. Angle: 5º Flute Length: 1" Shank Diameter: 1/4" No. Flutes: 2 Overall Length: 2-1/2" SKU: RSFBNT1160514/1-U2
Ballnose Diameter: 1/16" Taper Incl. Angle: 3º Flute Length: 3/4" Shank Diameter: 1/4" No. Flutes: 3 Overall Length: 3" SKU: RSFBNT1160314/34-U3
Ballnose Diameter: 1/8" Taper Incl. Angle: 5º Flute Length: 3/4" Shank Diameter: 1/4" No. Flutes: 3 Overall Length: 3" SKU: RSFBNT180514/34-U3
Ballnose Diameter: 1/8" Taper Incl. Angle: 1º Flute Length: 1-1/2" Shank Diameter: 1/4" No. Flutes: 3 Overall Length: 3" SKU: RSFBNT180114/112-U3
Ballnose Diameter: 1/4" Taper Incl. Angle: 5º Flute Length: 1-3/8" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4" SKU: RSFBNT140512/138-U3
Ballnose Diameter: 3/8" Taper Incl. Angle: 5º Flute Length: 1-1/2" Shank Diameter: 1/2" No. Flutes: 3 Overall Length: 4" SKU: RSFBNT380512/112-U3

D E S I G N :


• Tapered design provides increased strength and
rigidity for small ballnose diameters and long flute
lengths
• Superior surface finish is produced by the precision
ground cutting edges
• Large clearance areas prevent re-welding of debris by
allowing chips to quickly flow away from the cutting
edges
• Submicron, corrosion resistant, extended life carbide
provides increased durability and resistance to resin
build-up
• 30º Helix design with plunging capability


A P P L I C AT I O N :


• For an exceptionally smooth finish on
3 dimensional machining operations such as
mouldings and sculpted parts
• Exceptional finish on hardwoods, softwoods, MDF,
chipboard, plywood, solid surface, plastics and
composite materials
• 3 flute models allow for two cutting edges to be
engaged at all times, providing greater stability and
reducing run-out
• Upcut spiral improves chip ejection from
the cutting path



FOR A PRICE, RING 01204 701000 !!
