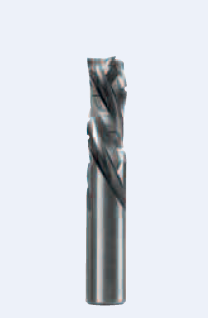

D E S I G N :
• Good surface finish is produced by the 3 precision
ground cutting edges with Chipbreakers
• Chipbreakers reduce cutting pressure and noise levels
• Good chipflow and lower heat retention are
provided by the 3 flute design with Chipbreakers
• Faster feed rates at low spindle speeds are possible
due to the high performance tool geometry
• Submicron, corrosion resistant, extended life carbide
provides increased durability and resistance to resin
build-up
• 30º Helix design with plunging capability
A P P L I C AT I O N :
• Chipbreakers reduce the size of chips and improve
chipflow, allowing for higher feed rates and tool life in
plywood, chipboard and solid wood
• Chipbreakers reduce tear-out in plywood,
solid wood and loose core materials
• Good finish on hardwoods, softwoods, chipboard
and plywood materials
• 3 flute design allows for two cutting edges to be
engaged at all times, providing greater stability and
reducing run-out
• Eliminates chipping, fuzzing and tear-out when the
end of the upcut/downcut cutting edges are
further than 1/16" from the top and bottom faces
of the board
• Use a “Mortise” upcut length of 0.188" when cutting
rebates, dados or pockets
• If part movement is a concern, use a “Mortise” Upcut
Length of 0.188"
• When possible select a router bit with a longer upcut
length to improve chip ejection from the cutting
path
• For improved dust extraction use with an
Aerotech (page FC21)
